Knutsen Harp Guitar

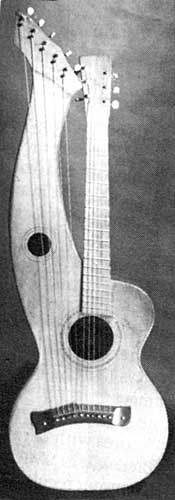

Click on picture to enlarge
(image copyright John Doan)

Knutsen Archives Inventory Number

HGT16

                 Category

Tacoma Harp Guitars

                 Body Style

"Evolving Symphony"

                 Current or last known owner

John Doan

              Year (approx)

1904-1906

                 Label

C. Knutsen, Sole Patentee of the Symphony=Harp=Guitar
with 11 Strings. The five extra bass strings are tuned to D, C, B, A, and G, one octave lower than regular pitch.

                 Label Code TA4

                 Courses / Strings

11 course: 6 strings on neck, 5 bass

                 Frets

slanted
                 Scale length 24-3/4"
                 Neck Joint no heel

Woods

Top

spruce

Back & Sides

mahogany

Neck

Douglas Fir

Fingerboard

mahogany

Bridge

stained hard wood
Headstock veneer mahogany

Binding, trim

Top

rope: alternating rectangular pieces of spruce and mahogany each 3/16" long joined end to end at a thickness of 1/8".

Back

none

Fingerboard

none

Headstock(s)

none
Soundhole 6 circles of inlay. Circles 1,2,5, and 6 appear to be
thin strips of mahogany while the third ring from opening is rope and the fourth from the opening is a thin herringbone.

                 Inlay

dot fret markers

                 Pickguard

none

                 Comments
